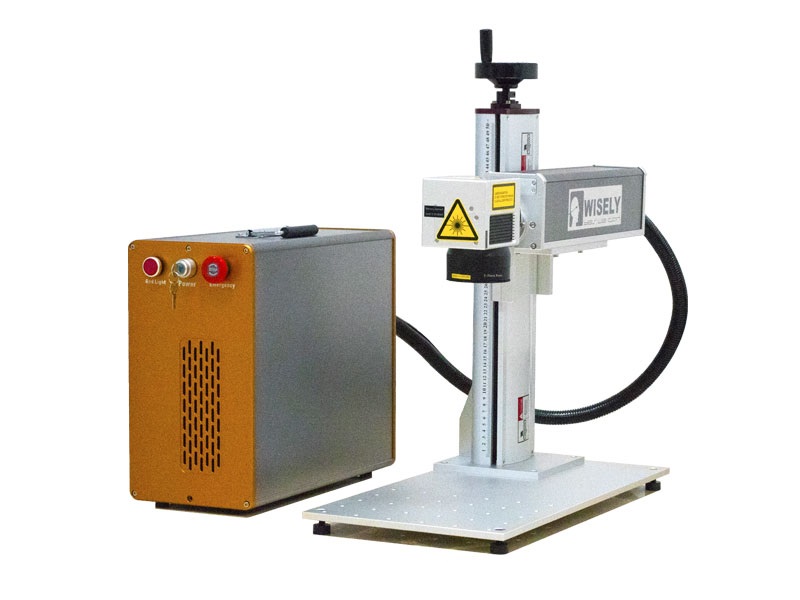

Fiber Laser 20W – MY-M20F-III

kr41,250.00Free shipping!

Manufacturer:

Tom på lager, Kan bestilles inn.

  Send meg epost når varen er på lager!
  Du vil få en epost når varen er tilgjengelig!

cancel?
Varenummer: WL-010020 Kategori:

Beskrivelse

Applicable Industries
Electronic Components: Resistors, Capacitors, Chips, Printed Circuit Boards, Computer Keyboard, etc.
Mechanical Parts: Bearings, Gears, Standard Parts, Motor, etc.
Instrument: Panel Board, Nameplates, Precision equipment, etc.
Hardware Tools: Knives, Tools, Measuring Tools, Cutting Tools, etc.
Automobile Parts: Pistons and Rings, Gears, Shafts, Bearings, Clutch, Lights, etc.
Daily Necessities: Handicrafts, Zipper, Key Holder, Sanitary Ware, etc.
Advantages
1) High Precision: Upto 0.0012mm, bring you the fantastic and satisfied marking effect.
2) Superior Laser Beam: The definition is 1 micron, 10 times as that of traditional products.
3) No Consumables: One Fiber marker can work for more than 10 years without any consumables.
4) High Speed: 7000mm / second, is 3 to 5 times above that of traditional products.
5) The fiber laser beam comes out from the fiber device directly, no need to adjust the laser optical path.
7) Low consumption: <500W, is 1/25 ~ 1/10 times as that of Diode and YAG, more economized and environmental.
8) JCZ controller, USB interface, swift and stable transmission, easy software operation, strong functions.
9) High-quality scan head, with good seal, capable to prevent dust and water, small volume, compact and solid.
10) Long lifespan of Raycus laser module: 0.1-0.2 million hrs (light pumping YAG: several hundred hrs; semi-conductor: 10 000 hrs)
11) Strong Compatibility: TTF Font, SHX, BMP, DXF, AI, PLT and other format files output from CorelDraw, PS, AutoCAD, etc..
12) Integrated Air Cooling System: The cooling effect is more excellent than the water cooling effect in YAG laser, no maintenance.
13) Deep Marking: Max. 1mm stainless steel, suitable for the industries which need high precision and depth marking effect.



Technical Parameters
Type MY-M20F-III
Power 20W
Laser Wavelength 1064nm
Marking Area 150mm*150mm
Marking Depth ≤2mm
Marking Speed 7000mm/s
Minimum Line Width 0.015mm
Minimum Character 0.2mm
Repeated Precision ±0.003mm
Fiber Laser Source Raycus from China
Life-span of Fiber Laser Module 100 000-200 000 hours
Beam Quality M2 <1.6
Focus Spot Diameter <0.01mm
Output Power of Laser 10%~100% continuously to be adjusted
Output Frequency of Laser 20KHz~80KHz continuously to be adjusted
Power Stability (8h) <±1.5%rms
System Operation Environment Windows XP / 7 / 8 / 10 -32/64bits
Cooling Mode Air cooling–Built-in
Temperature of Operation Environment 15℃~35℃
Voltage 220V / 50HZ / 1-PH or 110V / 60HZ / 1-PH
Power Requirement <500W
Computer Requested This type does not include the computer
Dimension (L*W*H) 550mm*600mm*600mm
Package Size 600mm*750mm*850mm
Net Weight 50KG
Gross Weight 80KG
